GeNetix Nodes - Firmware Update

Can ONLY be achieved either with a QuickQ console/rack or a MagicQ console/rack.

Can NOT be achieved from the web interface.


  1. Navigate to www.chamsyslighting.com

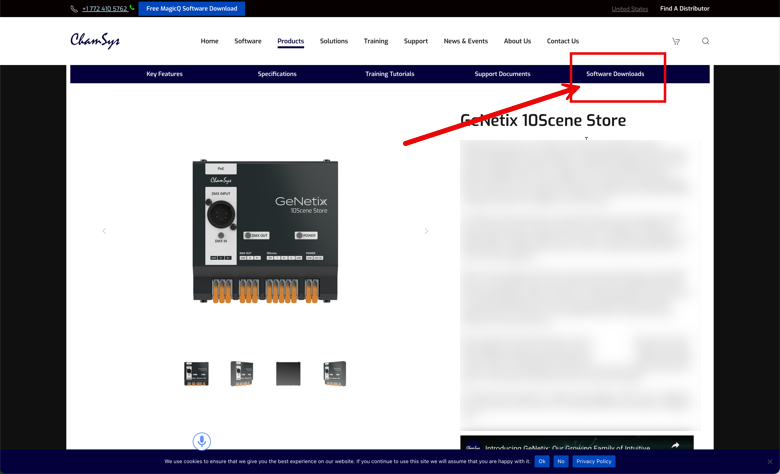

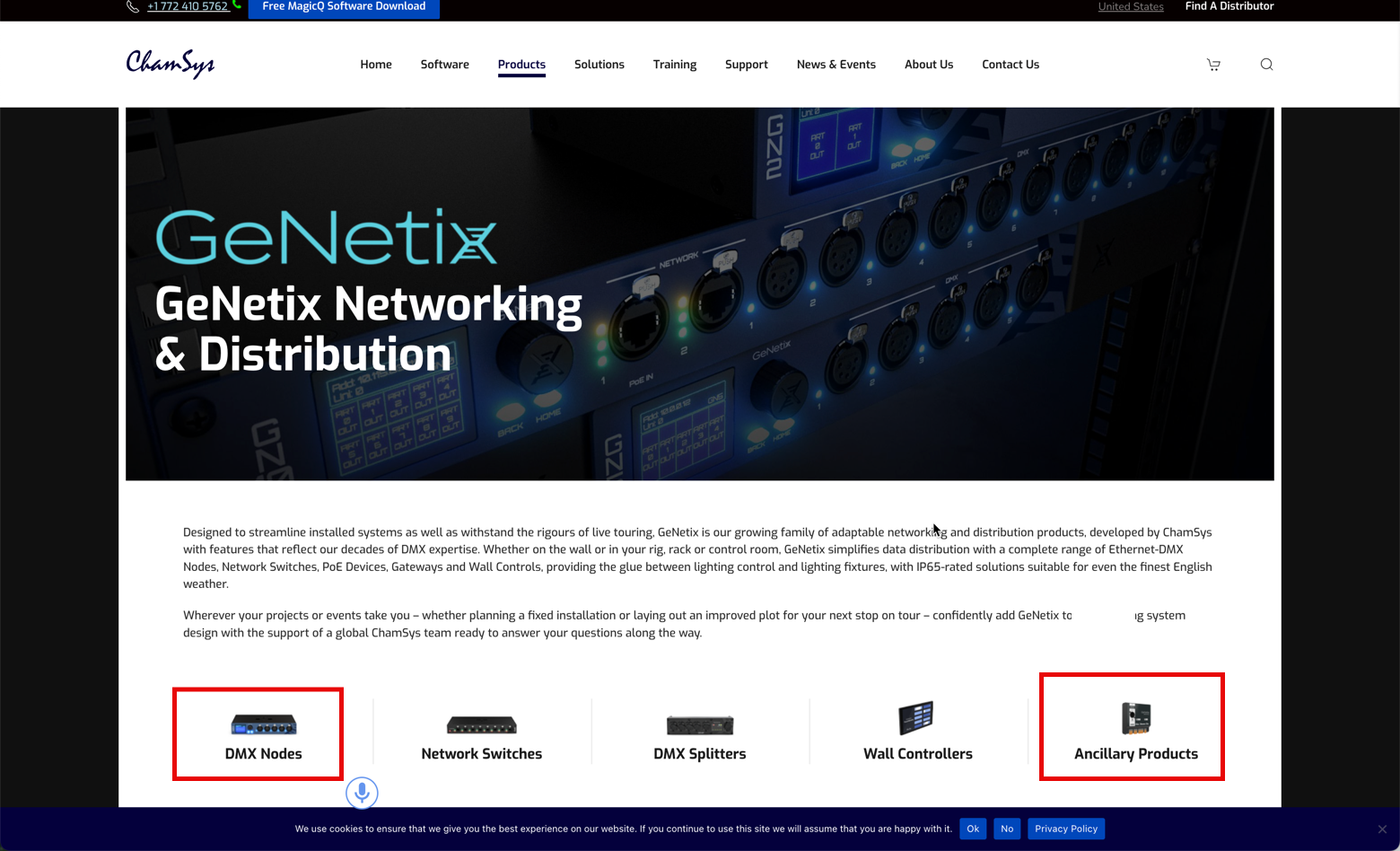

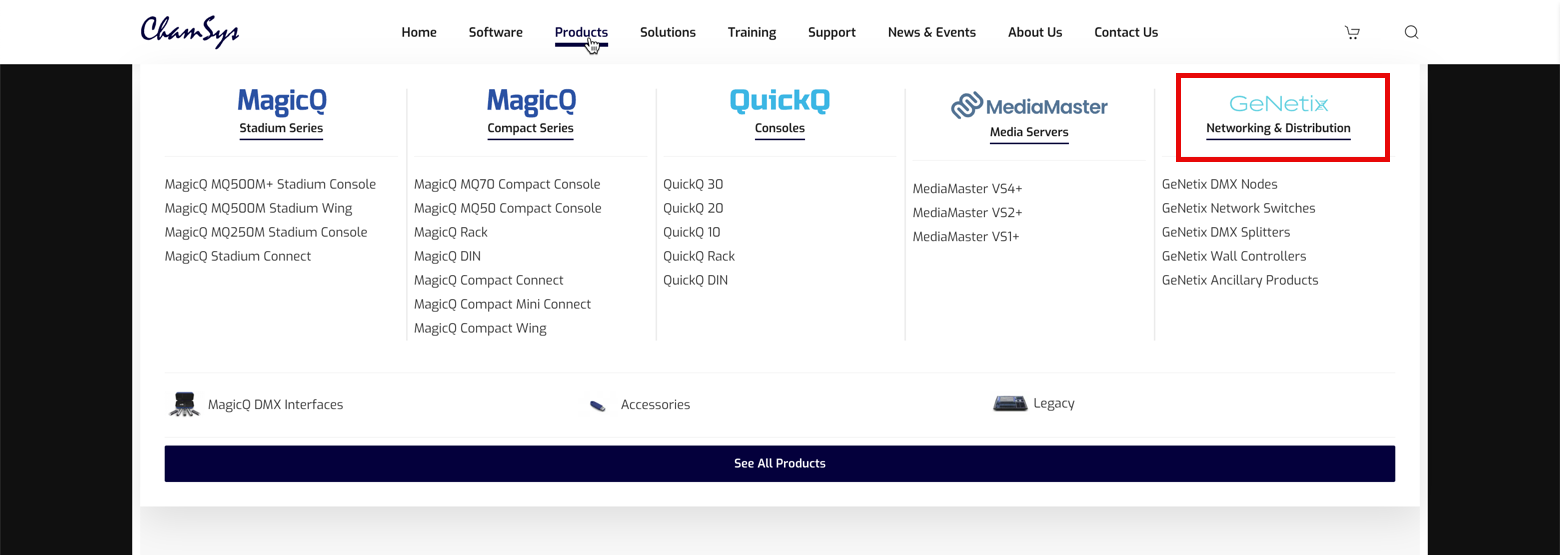

  2. Products, GeNetix, Select your product
  3. Select Software (sic).

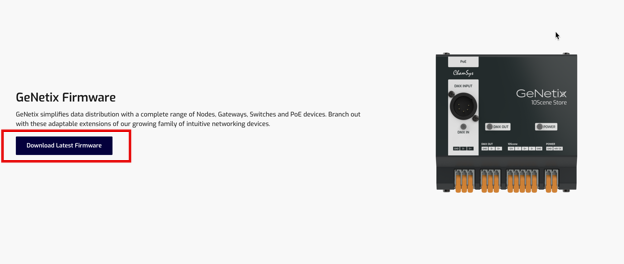

  4. This will take you to the firmware download.
  5. Download the Firmware, place it on a USB drive (FAT 32, no larger than 16GB)
  6. Plug the USB drive into your console:

QuickQ

  1. Navigate to the Main Menu, Network Devices, and select your device.
  2. Select Firmware update, USB drive, and the downloaded file.

MagicQ

  1. Navigate to the File Manager, USB Drive
  2. Select the file using the arrow keys so the yellow cursor is around the file name.
  3. Select Copy, then enter to select the file.
  4. Navigate to Hard Drive, then up one folder to the Firmware folder.
  5. Select the single period "." to paste into the folder.
  6. Set up, then NetManager, Chamnet devices, and cursor down to your device.
  7. Select Update Firmware from the top right soft buttons.
  8. Select the firmware file.
